Large Turbine

Large Turbine
Mod	GregTech 5 Unofficial
Type	Solid block

Turbine Casing
Mod	GregTech 5 Unofficial
Type	Solid block

Turbine
Mod	GregTech 5 Unofficial
Type	Item

The Large Turbine is a multiblock generator added by GregTech 5 Unofficial. It is capable of producing large amounts of Energy Units (EU). It comes in 4 variants: Steam, High Pressure, Gas, and Plasma. The amount of Steam/Gas/Plasma used depends on the Turbine built in. It slowly speeds up, so it should be used for constant Energy supply.

The main Turbine block changes the fluids the turbine can run with.

• A Large Steam Turbine runs on Steam and IndustrialCraft 2 Steam and will output Distilled Water in addition to the Energy Units.
• A Large High Pressure Turbine runs on Superheated Steam from IC2 (can also be produced with Large Heat Exchanger) and will output regular Steam in addition to the Energy Units.
• A Large Gas Turbine runs on Methane, Hydrogen and Biogas.
• A Large Plasma Generator runs on all types of plasma generated in the Fusion Reactor.

The Large Turbine requires a turbine rotor. Turbine rotors vary greatly in size and material and contribute efficiency, durability and optimal flow modifiers to the running of the turbine.

• Durability: About every 3000 ticks, the turbine takes 20% of the EU/t generated damage. In the Plasma Generator the damage is $\frac{EU}{t}^{0.7}$.
• Durability in latest GT5U: About every 1000 ticks, the turbine takes 20% or $\frac{EU}{t}^{0.6}$(whatever is smaller) of the EU/t generated damage.
• Efficiency: A percentage factored into the power output of the turbine.

• Optimal Flow: How much steam/gas/plasma/lava is required to attain ideal power production

Recipes

Shaped Crafting

Shaped Crafting

Shaped Crafting

Shaped Crafting

Shaped Crafting

Shaped Crafting

4

Total: 16000 EU

Usage: 100 EU/t

Voltage: 100 EU

Amperage: 1

Time: 8 secs

Assembler

8

Total: 128000 EU

Usage: 400 EU/t

Voltage: 400 EU

Amperage: 1

Time: 16 secs

Assembler

12

Total: 1024000 EU

Usage: 1600 EU/t

Voltage: 1600 EU

Amperage: 1

Time: 32 secs

Assembler

4

Total: 8192000 EU

Usage: 6400 EU/t

Voltage: 6400 EU

Amperage: 1

Time: 64 secs

Assembler

Building the Multiblock

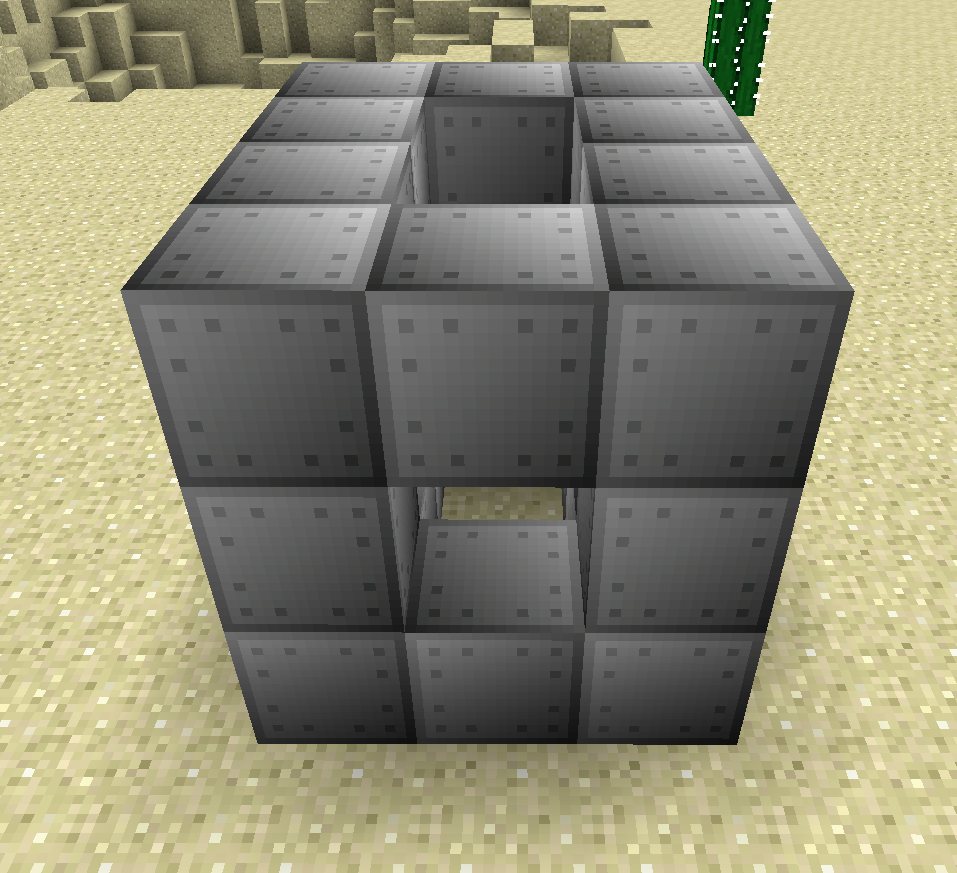

Build the edges of a 3x3x4 Block with Turbine Casings

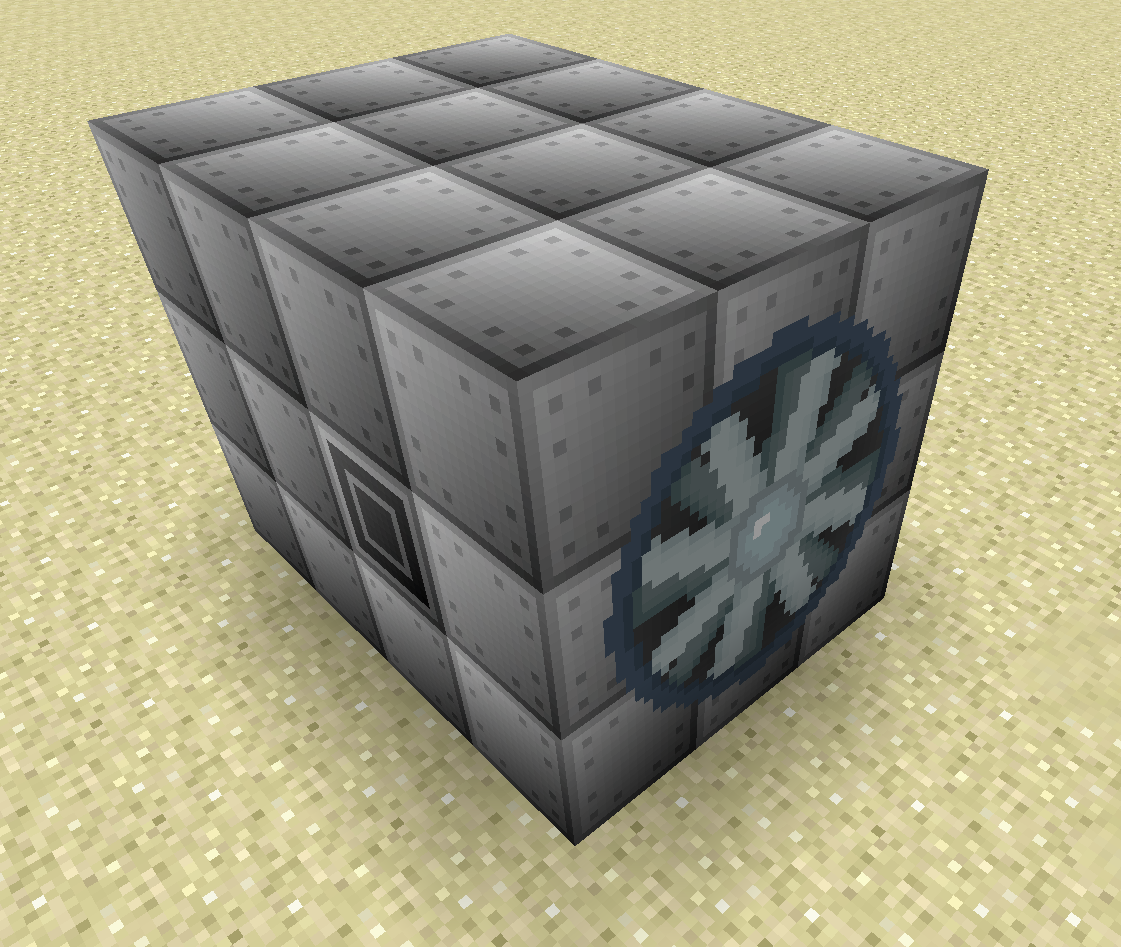

The Main Turbine Block comes in the front Center, the surrounding blocks become a turbine texture

The Large Turbine is assembled as a 3x3x4 (long) multiblock structure. The entire frame must be made from Turbine Casings.

The Front-Center of the multiblock must be a Main Turbine Block. The Back-Center must be a Dynamo Hatch.

The sides (including top and bottom) must include:

• 1 or more Input Hatches
• 1 Output Hatch (required for Steam and High Pressure turbines)
• 1 Maintenance Hatch
• 1 Muffler Hatch (required for Gas Turbine)

The remaining sides are Turbine Casings. The two center blocks remain air blocks. The 9 Blocks in front of the Turbine also must be air blocks.

After that, a Turbine must be placed in the top-right slot in the turbine gui. After fixing the maintenance issues in the maintenance hatch, the turbine can be started with a hit from a soft hammer.

Once the turbine has been started, it will continue in "On" mode until it is deactivated (intentionally or otherwise). It will not deactivate by running out of steam.

Rotors

This table lists the attributes of all available turbine materials. The "Flow" attribute given is the optimal L/sec for Steam Turbines. To find the optimal EU/t for Plasma Turbines, multiply the "Flow" attribute by 2. To find the optimal EU/t for Gas Turbines, divide the "Flow" attribute by 20.

Material	Small Turbine			Turbine			Large Turbine			Huge Turbine
	Durability	Efficiency	Flow	Dur.	Eff.	Flow	Dur.	Eff.	Flow	Dur.	Eff.	Flow
Blaze	1600	60	1000	3200	85	2000	4800	110	3000	6400	90	4000
Epoxid	3200	60	3000	6400	85	6000	9600	110	9000	12800	90	12000
PTFE	3200	60	3000	6400	85	6000	9600	110	9000	12800	90	12000
Polycaprolactam	3200	60	3000	6400	85	6000	9600	110	9000	12800	90	12000
Graphene	3200	60	6000	6400	85	12000	9600	110	18000	12800	90	24000
Carbon	6400	70	1000	12800	95	2000	19200	120	3000	25600	100	4000
Lead	6400	60	8000	12800	85	16000	19200	110	24000	25600	90	32000
Midasium	6400	70	12000	12800	95	24000	19200	120	36000	25600	100	48000
Beryllium	6400	70	14000	12800	95	28000	19200	120	42000	25600	100	56000
Gold	6400	70	12000	12800	95	24000	19200	120	36000	25600	100	48000
Electrum	6400	70	12000	12800	95	24000	19200	120	36000	25600	100	48000
Astral Silver	6400	70	10000	12800	95	20000	19200	120	30000	25600	100	40000
Mithril	6400	80	14000	12800	105	28000	19200	130	42000	25600	110	56000
Nichrome	6400	70	6000	12800	95	12000	19200	120	18000	25600	100	24000
Bismuth	6400	60	6000	12800	85	12000	19200	110	18000	25600	90	24000
Platinum	6400	70	12000	12800	95	24000	19200	120	36000	25600	100	48000
Infused Gold	6400	80	12000	12800	105	24000	19200	130	36000	25600	110	48000
Kanthal	6400	70	6000	12800	95	12000	19200	120	18000	25600	100	24000
Cupronickel	6400	60	6000	12800	85	12000	19200	110	18000	25600	90	24000
Silver	6400	70	10000	12800	95	20000	19200	120	30000	25600	100	40000
Nickel	6400	70	6000	12800	95	12000	19200	120	18000	25600	100	24000
Tin Alloy	9600	70	6500	19200	95	13000	28800	120	19500	38400	100	26000
Aluminium	12800	70	10000	25600	95	20000	38400	120	30000	51200	100	40000
Sterling Silver	12800	70	13000	25600	95	26000	38400	120	39000	51200	100	52000
Rose Gold	12800	70	14000	25600	95	28000	38400	120	42000	51200	100	56000
Black Bronze	25600	70	12000	51200	95	24000	76800	120	36000	102400	100	48000
Bismuth Bronze	25600	70	8000	51200	95	16000	76800	120	24000	102400	100	32000
Bronze	19200	70	6000	38400	95	12000	57600	120	18000	76800	100	24000
Thaumium	25600	80	12000	51200	105	24000	76800	130	36000	102400	110	48000
Iron	25600	70	6000	51200	95	12000	76800	120	18000	102400	100	24000
Magnetic Iron	25600	70	6000	51200	95	12000	76800	120	18000	102400	100	24000
Meteoric Iron	38400	70	6000	76800	95	12000	115200	120	18000	153600	100	24000
Wrought Iron	38400	70	6000	76800	95	12000	115200	120	18000	153600	100	24000
Pig Iron	38400	70	6000	76800	95	12000	115200	120	18000	153600	100	24000
Ironwood	38400	70	6000	76800	95	12000	115200	120	18000	153600	100	24000
Invar	25600	70	6000	51200	95	12000	76800	120	18000	102400	100	24000
Magnalium	25600	70	6000	51200	95	12000	76800	120	18000	102400	100	24000
Manganese	51200	70	7000	102400	95	14000	153600	120	21000	204800	100	28000
Steel	51200	70	6000	102400	95	12000	153600	120	18000	204800	100	24000
Magnetic Steel	51200	70	6000	102400	95	12000	153600	120	18000	204800	100	24000
Fiery Steel	25600	80	8000	51200	105	16000	76800	130	24000	102400	110	32000
Black Steel	76800	70	6500	153600	95	13000	230400	120	19500	307200	100	26000
Dark Steel	51200	80	8000	102400	105	16000	153600	130	24000	204800	110	32000
Red Steel	89600	70	7000	179200	95	14000	268800	120	21000	358400	100	28000
Blue Steel	102400	70	7500	204800	95	15000	307200	120	22500	409600	100	30000
Meteoric Steel	76800	70	6000	153600	95	12000	230400	120	18000	307200	100	24000
Neodymium	51200	70	7000	102400	95	14000	153600	120	21000	204800	100	28000
Magnetic Neodymium	51200	70	7000	102400	95	14000	153600	120	21000	204800	100	28000
Uranium-235	51200	80	6000	102400	105	12000	153600	130	18000	204800	110	24000
Uranium-238	51200	80	6000	102400	105	12000	153600	130	18000	204800	110	24000
Plutonium-241	51200	80	6000	102400	105	12000	153600	130	18000	204800	110	24000
Plutonium-244	51200	80	2000	102400	105	4000	153600	130	6000	204800	110	8000
Thorium	51200	70	6000	102400	95	12000	153600	120	18000	204800	100	24000
Fluxed Electrum	51200	80	16000	102400	105	32000	153600	130	48000	204800	110	64000
Molybdenum	51200	70	7000	102400	95	14000	153600	120	21000	204800	100	28000
Brass	9600	60	7000	19200	85	14000	28800	110	21000	38400	90	28000
Cobalt Brass	25600	70	8000	51200	95	16000	76800	120	24000	102400	100	32000
Cobalt	51200	80	8000	102400	105	16000	153600	130	24000	204800	110	32000
Chrome	25600	80	11000	51200	105	22000	76800	130	33000	102400	110	44000
Vanadiumsteel	192000	80	3000	384000	105	6000	576000	130	9000	768000	110	12000
Stainless Steel	48000	70	7000	96000	95	14000	144000	120	21000	192000	100	28000
Enderium	25600	80	8000	51200	105	16000	76800	130	24000	102400	110	32000
Palladium	51200	70	8000	102400	95	16000	153600	120	24000	204800	100	32000
Titanium	160000	80	7000	320000	105	14000	480000	130	21000	640000	110	28000
Tungsten	256000	80	7000	512000	105	14000	768000	130	21000	1024000	110	28000
Tungstensteel	256000	90	8000	512000	115	16000	768000	140	24000	1024000	120	32000
TungstenCarbide	128000	90	14000	256000	115	28000	384000	140	42000	512000	120	56000
Knightmetal	102400	80	8000	204800	105	16000	307200	130	24000	409600	110	32000
Damascus Steel	128000	70	8000	256000	95	16000	384000	120	24000	512000	100	32000
Enriched Naquadah	128000	90	6000	256000	115	12000	384000	140	18000	512000	120	24000
Iridium	256000	80	6000	512000	105	12000	768000	130	18000	1024000	110	24000
Osmium	128000	90	16000	256000	115	32000	384000	140	48000	512000	120	64000
Osmiridium	160000	80	7000	320000	105	14000	480000	130	21000	640000	110	28000
HSS-G	400000	80	10000	800000	105	20000	1200000	130	30000	1600000	110	40000
HSS-E	512000	90	10000	1024000	115	20000	1536000	140	30000	2048000	120	40000
HSS-S	300000	90	14000	600000	115	28000	900000	140	42000	1200000	120	56000
Ultimet	204800	90	9000	409600	115	18000	614400	140	27000	819200	120	36000
Desh	12800	80	1000	25600	105	2000	38400	130	3000	51200	110	4000
Steeleaf	76800	80	8000	153600	105	16000	230400	130	24000	307200	110	32000
Naquadah	128000	90	6000	256000	115	12000	384000	140	18000	512000	120	24000
Naquadria	51200	90	1000	102400	115	2000	153600	140	3000	204800	120	4000
Naquadah Alloy	512000	100	8000	1024000	125	16000	1536000	150	24000	2048000	130	32000
Duranium	512000	100	16000	1024000	125	32000	1536000	150	48000	2048000	130	64000
Tritanium	1024000	110	20000	2048000	135	40000	3072000	160	60000	4096000	140	80000
Adamantium	512000	100	10000	1024000	125	20000	1536000	150	30000	2048000	130	40000
Neutronium	65536000	110	24000	131072000	135	48000	196608000	160	72000	262144000	140	96000

Math

Optimal Flow and Nominal Output

Optimal Flow is the flow rate required to achieve optimal output for the turbine. Each turbine rotor has a specific optimal flow rate, which is further defined by the type of turbine it is installed in (Steam vs HP Steam vs Gas vs Plasma). It is important to understand that the "Optimal Steam Flow" displayed on the tooltip for a Turbine Rotor is specific to the Large Steam Turbine. Optimal Flow for all Large Turbine types (including Steam) is calculated as:

$\text{Optimal Flow} = \frac{\text{Nominal Output}}{\text{Fuel Value}}$

Nominal Output

To determine nominal flow rate, the actual nominal output must first be determined. Each Large Turbine type has a multiplier to the stated (tooltip) Optimal Steam Flow which is used in the calculation.

Turbine Type	Nominal Output
Steam	Optimal Steam Flow / 2
HP Steam	Optimal Steam Flow
Gas	Optimal Steam Flow
Plasma	Optimal Steam Flow * 40

Nominal Output Examples

• A Large Steam Turbine using a "10000 L/sec" turbine item has a nominal output of (10000/20) / 2 = 250 EU/t.
• A Large Gas Turbine using a "10000 L/sec" turbine item has a nominal output of (10000/20) = 500 EU/t.
• A Large Plasma Turbine using a "10000 L/sec" turbine item has a nominal output of (10000/20) * 40 = 20000 EU/t.
• A Large Plasma Turbine using a "40000 L/sec" turbine item has a nominal output of (40000/20) * 40 = 80000 EU/t.

(Flow is divided by 20 to get the rate in volume per tick instead of volume per second)

Fuel Values (not all listed)

Fuel Type	Value
Steam	0.5 EU/L
HP Steam	1 EU/L
Biogas	32 EU/L
Helium Plasma	4096 EU/L

Calculation

Using $\text{Optimal Flow} = \frac{\text{Nominal Output}}{\text{Fuel Value}}$

Steam: $\frac{10000 L/s}{2} \div / (0.5) = 10,000 L/s\ or 500 L/t$

Biogas: $\frac{10000 L/s}{32} = ~312 L/s\ or ~16 L/t$

Helium Plasma: $\frac{10000 L/s \times 40}{4096} = ~98 L/s\ or ~5 L/t$

Efficiency

A turbine's actual output is $\frac{\text{Nominal Output} \times \text{Efficiency} }{100}$. $\text{Efficiency}$ is expressed as a percentage. A turbine can work with up to 150% of its optimal flow, but no power will be generated from the surplus. If supplied with less, the turbine will still run, but an additional efficiency modifier will be applied to the output as $\text{Flow Efficiency} = \frac{\text{ActualFlow}}{\text{Optimal Flow}}$. Therefore A Large Gas Turbine using a "10000 L/sec 110% Efficiency" turbine rotor has a actual output of $(10000 EU/t \div 20) \times 1.10 = 550 EU/t$.

Spin Up / Spin Down

Large Turbines have a spin up time of 50 seconds and slow down over a period of 10 seconds, at which point they are not operating at full efficiency.
